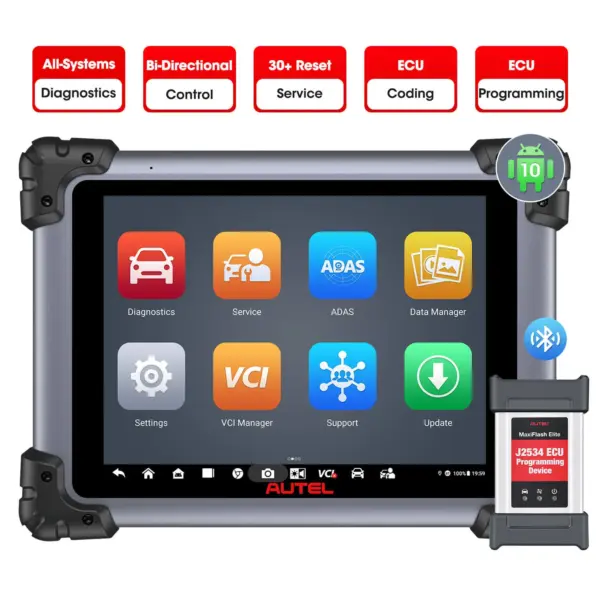

Autel Maxisys MS908S Pro II
Autel MS908S Pro II is a high-end diagnostic and analysis tool designed for professional technicians and mechanics. It features advanced diagnostics capabilities, including full system scans, bi-directional control, and coding and programming functions. The device is equipped with a 9.7-inch high-resolution touch screen and runs on a fast and powerful octa-core processor. It has extensive vehicle coverage, supporting over 80 domestic, Asian, and European makes and models. With its robust hardware, software, and user-friendly interface, the Autel MS908S Pro II is a valuable tool for diagnosing and fixing complex vehicle issues.
Global Version No IP Restriction, You can use MS908S Pro II all over the world.
OE-Level Diagnosis Autel Scan Tool MS908S Pro IIworks well on 80+ car makes and models worldwide (1996 and newer)
Service Functions MaxiSys MS908S Pro II Scanner has up to 30 Reset service functions options
New Upgraded Version MS908S Pro II is an upgraded model of MK908, which has improved hardware.
ECU Coding/Programming Autel Maxisys MS908S Pro II flagship diagnostic tool supports Online ECU Coding and Programming
Bi-Directional Control Autel MaxiSys MS908S Pro II supports active test diagnostic function
1-Year Warranty Autel brand new authentic tool comes with 1-Year warranty
Battery Test Autel MS908S Pro II can be used with BT506 for battery test
Comparison of similar models
| Model | MS908S Pro | MS908S Pro II | ||
| Hardware | ||||
| CPU | Exynox 5260 | Exynox 8895 | ||
| RAM | 2GB | 4GB | ||
| ROM | 64G | 128G | ||
| Android Version | Android 4.4.4 | Android 10.0 | ||
| Screen resolution | 1024*768 | 2048*1536 | ||
| Wi-Fi | 2.4GHz | 2.4GHz & 5GHz | ||
| Camera | Rear 8MP | Rear 16MP | ||
| Software | ||||
| D-PDU/RP1210 Standard | / | Support | ||
| SCAN VIN/Scan License | / | Support | ||
| Wi-Fi Print | / | Support | ||
Diagnostic
DiagnosticThe Diagnostics tool MS908S Pro II’s application can retrieve ECU information, read & erase DTCs, and view live data. The Diagnostics application can access the electronic control unit (ECU) for various vehicle control systems, including engine, transmission, antilock brake system (ABS), airbag system (SRS)
Vehicle Identification
The MaxiSys diagnostic system (MS908S Pro II)supports four methods for Vehicle Identification: Auto VIN Scan, Manual VIN Input, Automatic Selection, Manual Selection
- Auto Scan
- ECU Information
- Trouble Codes
- Additional Functions
The Auto Scan function performs a comprehensive scanning over all the ECUs in the vehicle to locate systems’ faults and retrieve DTCs. An example of the Auto Scan interface is pictured below:
Service
ServiceThe service section is specially designed to provide you with quick access to the vehicle systems for various scheduled service and maintenance performances. The typical service operation screen is a series of menu driven executive commands. By following the on-screen instructions to select appropriate execution options, enter correct values or data, and perform necessary actions, the system will guide you through the complete performance for various service operations.
The reset service is not applicable to all models, and the models supported by different functions are different. If you need to know whether Autel diagnostic tools can support it, please contact us and inform us of
- Vehicle information (brand, model, model or VIN )
- Requirements (code reading, clearing code? Which one or several items of the reset service? Or more advanced functions).
- Contact Us
- Bi-Directional Control
- Online ECU Coding
- Online ECU Programming
- Helpful Service
Autel Scanner, MaxiSys MS908S Pro II comes with advanced bi-directional control (active test) function that allows mechanics determine the integrity of the system or parts by sending commands to a car with the tool and reading the data coming back from it. Such as ABS, window, door, solenoids, relay, switch, valves, sunroof, headlamps and etc.
Autel MaxiSys MS908S Pro II Specifications
| Operating System: | Android™ 10.0 |
| CPU: | Qualcomm 660 |
| Memory: | 4GB RAM & 128GB On-board Memory |
| Display: | 9.7 inch LED capacitive touch screen with 2048×1536 resolution |
| Connectivity: | Wi-Fi (802.11 a/b/g/n/ac); USB: 2.0; BT v.2.1 + EDR; SD Card (Support up to 32GB); HDMI |
| Camera (rear): | 16.0 Megapixel, AF with Flashlight |
| Sensors; | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output: | • Microphone • Dual Speakers • 3-Band 3.5 mm stereo/standard headset jack |
| Power and Battery: | 11000 mAh 3.7 V lithium-polymer battery Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C |
| Input Voltage: | 12 V (9-24 V) |
| Power Consumption: | 6.5 W |
| Operating Temp.: | -10 to 55°C (14 to 131°F) |
| Storage Temp.: | -20 to 70°C (-4 to 158°F) |
| Dimensions (W x H x D): | 300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”) |
| Weight | NW: 1.42 kg (3.13 lb.) GW: 8.052 kg (17.75 lb.) |
| Protocols | ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW,SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN,GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939,SAE J1708, Fault-Tolerant CAN |
