2023 MaxiSYS Ultra

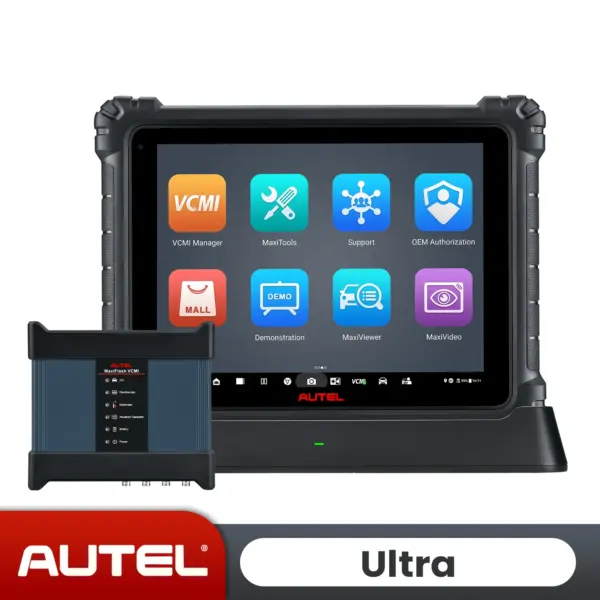

Autel Maxisys Ultra

Autel Ultra features a large, high-resolution touchscreen display that provides a clear and intuitive interface for users to navigate. It also has a built-in battery tester and oscilloscope, allowing users to test and analyze the performance of an EV’s battery and electrical systems. In addition, the Autel Ultra has comprehensive diagnostic capabilities for a range of EV makes and models, including Tesla, Nissan, BMW, and more. Its advanced diagnostic features include system scanning, fault code reading, live data streaming, and component testing. Overall, the Autel Ultra is an essential tool for any automotive technician or EV enthusiast who wants to accurately diagnose and solve problems with electric vehicles.

Intelligent Diagnostics

Intelligent Diagnostics is a specific fault code analysis function, with which you can access the most comprehensive and the latest code-specific data, DTC analysis, repair assist, repair tips, and relevant repair cases. It has been drawn from real world shop repair orders and records and with input from experienced industry professionals.

Intelligent Diagnostics adopts the scientific data cloud computing technology to match the specific fault code with the exact vehicle model. And the data has been thoroughly verified by automotive maintenance professionals.

Technical Service Bulletin (OEM Information)

The Technical Service Bulletin (TSB) function matches the selected fault code with relevant vehicle manufacturer TSBs. All TSBs that relate to the selected DTC are listed in the TSB display window. Select a TSB to open the TSB page and view the TSB in details.

DTC Analysis

On the Intelligent Diagnostics screen, the DTC Analysis contains repair assistance and information related to the fault codes, including the fault description, condition, and possible solution. The repair assistance information may vary by vehicle.

Repair Assist

The Repair Assist displays a list of items and their descriptions, completion status, and priorities. The higher the priority number is (1 is the highest), the earlier the related items should be tested.

Component Measurement

The component measurement section provides a general troubleshooting overview, and guides to connect and use the oscilloscope to test components for faults. This section may include relevant circuit or wiring diagrams, vehicle structures analysis, waveform analysis, related DTCs, and detailed notation to aid the technician in diagnostics and repairs.

Topology Module Mapping

The topology mapping function of Autel Ultra is a powerful feature that allows you to create a visual map of the network topology. This feature is especially useful for network administrators and IT professionals who need to troubleshoot issues on complex networks. With the topology mapping function, Autel Ultra can automatically discover and map all devices on the network, including routers, switches, and other network devices. The map shows the physical connections between the devices and the logical connections between the network segments.

Autel 5 in 1 MaxiFlash VCMI – Four Isolated Channels

Autel MaxiSys Ultra top automotive diagnosis scanner is equipped with MaxiFlash VCMI, a powerful multifunctional connector with Oscilloscope, Waveform Generator, Multimeter, and OBD Communication, functions worth over £1500 on the market. Via the VCMI with New CAN BUS Protocols (latest DOIP & CAN FD BUS) and OE-Diagnostic Protocol Standards (D-PDU/J2534/RP1210), you can use it with the original OE diagnosis scanner for programming.

‹

›

VCI CommunicationOscilloscopeWaveform GeneratorMultimeterOBD CAN Signal Check

Service

The Service section is specially designed to provide you with quick access to the vehicle systems for various scheduled service and maintenance performances. The typical service operation screen is a series of menu driven executive commands. By following the on-screen instructions to select appropriate execution options, enter correct values or data, and perform necessary actions, the system will guide you through the complete performance for various service operations.

The reset service is not applicable to all models, and the models supported by different functions are different. If you need to know whether Autel diagnostic tools can support it, please contact us and inform us of

Bi-directional Control (Active Test)

Ultra automotive diagnostic scanner comes with bi-directional control capability to perform active tests to determine the integrity of a system or parts like ABS, window, door, roof, by reading the ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay.
Note: Available tests vary depending on the manufacturer, year, and model, and only the available tests display in the menu. To check compatibility with your vehicle, please refer to Autel website or consult us directly.

Online ECU Coding

Autel Ultra is an advanced diagnostic scanner that offers a wide range of features, including online ECU coding. Online ECU coding refers to the process of updating or reprogramming the Electronic Control Unit (ECU) of a vehicle remotely via the internet. With the Autel Maxisys Ultra scanner, you can access the online ECU coding function by connecting the device to the internet and selecting the appropriate vehicle make and model. The scanner will then communicate with the manufacturer’s server to download the latest ECU programming files and update the vehicle’s ECU accordingly.

This function allows you to perform various tasks, such as adding new features to your vehicle, adjusting the engine’s performance, and improving fuel efficiency. It is especially useful for mechanics and technicians who need to update a large number of vehicles quickly and efficiently. Overall, the online ECU coding function of the Autel Ultra scanner is a powerful tool that provides a convenient and effective way to update and improve your vehicle’s performance.

Online ECU Programming

The Autel Ultra is a cutting-edge diagnostic tool that features an advanced online ECU programming function. This powerful feature enables automotive technicians and mechanics to program the vehicle’s electronic control unit (ECU) remotely using the Autel Cloud. With the online ECU programming function, technicians can access the latest software updates and OEM-specific data from the Autel Cloud. This data can be used to update or reprogram the vehicle’s ECU with the latest performance enhancements, bug fixes, and security patches.

To use the online ECU programming function, the Autel Ultra connects to the vehicle’s OBD-II port and establishes a secure, wireless connection to the Autel Cloud. The technician can then select the desired programming options and initiate the programming process. The Autel Ultra will guide the technician through each step of the programming process, providing real-time feedback and alerts if any issues arise. The online ECU programming function of the Autel Ultra is compatible with a wide range of vehicles from various manufacturers. This feature not only saves time and money by reducing the need for physical updates or reprogramming, but also ensures that the vehicle’s ECU is always up-to-date and optimized for peak performance.

Guided Function

The Guided Functions are advantaged with their easy operations. A guided functions is composed of multiple basic functions, freeing users from trouble such as looking up channel number and login code. Every guided function has detailed operation guidance and operating condition statement.

Autel MaxSys Ultra Expanded Functions

Vehicle Coverage

Autel Cloud Serive

Easily contact a trusted expert directly from your MaxiSYS Ultra series tool. Automatic vehicle information entry streamlines the order creation & approval process. Monitor vehicle vitals while programming.

Autel Maxisys Ultra Specification:
